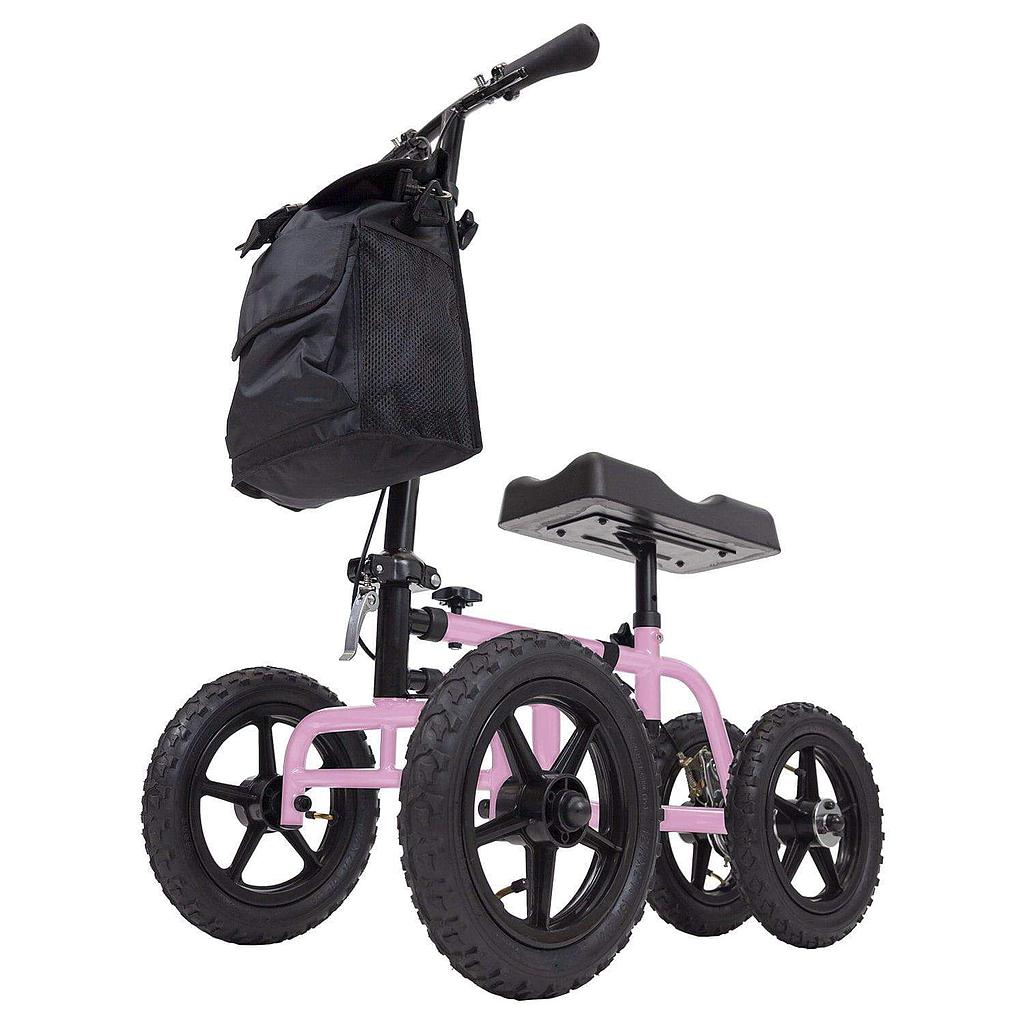

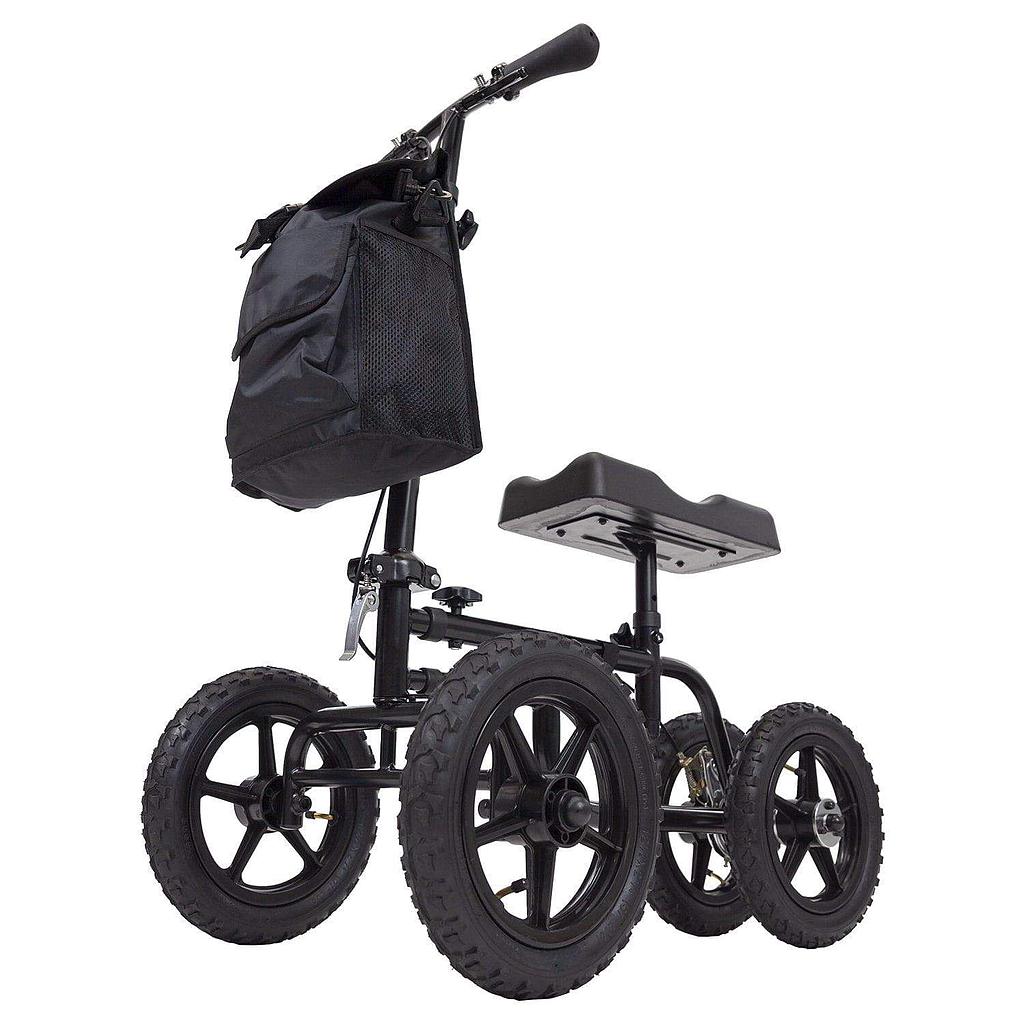

All Terrain Knee Walker

  |

Providing an excellent alternative to crutches, the all-terrain knee walker allows individuals to safely navigate indoors and out with large, 12-inch air filled tires. Featuring a dual braking system and comfort grip steering handle, the knee scooter easily maneuvers over grass, pavement, carpeting and gravel.



FEATURES


  • Great Alternative To Crutches
    Regain independence with the all-terrain, quad knee walker. Providing comfortable support following foot, ankle, or lower leg injury or surgery, the knee walker allows individuals to move safely and comfortably throughout the day while eliminating the fatigue and discomfort caused by using traditional crutches.For additional convenience, a storage bag is included that easily attaches to the walker to securely carry essential everyday items.


  • Maximum Stability And Control
    Four, 12-inch pneumatic wheels provide an exceptionally stable base for easy maneuverability on any surface, including carpet, gravel, grass, dirt and pavement. The knee walker also utilizesdual rear disk brakes to provide superior stability and control on uneven surfaces and gentle inclines.


  • Contoured Knee Pad
    Providing extra stability and support, the comfortable foam knee cushion is contoured to cradle the lower leg. The resilient foam platform allows the pressure to be evenly distributed across the knee platform,reducing pain and fatigue in the hip, knee and leg.


  • Lightweight Durability
    Safely supporting up to 300 pounds, the lightweight steel knee scooter is durable and fully adjustable for a customized fit. The cushioned knee platform height is adjustable between 20” to 26”. The steering handle is also adjustable from 38” to 46”. The removable knee platform and folding steering handle allow the scooter to easily be stored and transported as needed.


  • Vive Guarantee
    Lifetime Guarantee so you can purchase now with confidence.



GENERAL SPECIFICATIONS


  • What's Included:
        • Knee walker
        • Storage bag
        • 1 year guarantee
      •  Materials:
        • Matte black steel frame.
        • Resilient foam knee platform
      • Frame length: 35”
      • Frame width:18”
      • Knee Pad Platform Dimensions:19” - 23.5”
      • Knee Platform Height: 20" to 26"
      • Steering Handle Height: 38" to 46"
      • Wheels:12”
      • Weight Capacity:Max 300 lb
  • Handle Bars: 37” - 45.5”
    • Terrain Knee Walker: 5’ - 6” to 6’ - 6”



    PRODUCT SPECIFICATIONS


  • Operating Instructions:
        • Center injured leg on the knee pad, covering the entire length of the padding.
        • Standing as straight as possible, propel yourself forward using your uninjured leg.
        • Engage the security lock before attempting to transfer from the knee walker.
  • Braking:
        • To lock the hand brake, pull the brake lever on the handlebar towards you.
        • To lock the brake system, pull the brake lever towards you and push down on the locking pin on top of the lever. The pin will lock the wheels in place.
  • How to Adjust the Platform Height:
        • Loosen the locking lever under the knee pad and remove the locking pin.
        • Adjust knee pad to the desired height and replace locking pin to secure it in place.
  • How to Adjust the Handlebar Height:
        • Loosen the adjustment screw on the handle by turning it counterclockwise until it can be removed.
        • Adjust the handlebar grip to the desired height.
        • Tighten the adjustment screw.
  • How to Fold:
      • Pull up on the twist lock lever to unsecure the folding joint.
      • Twist the level counter-clockwise a couple of times to loosen the locking mechanism.
      • Fold down the twist-lock lever and slide it to the left to disengage the lock holding the steering column upright.
      • Push the steering column back into the folded position.
      • Remove the knee platform if necessary for more compact storage and portability.



    GUARANTEE POLICY


    • frame - 1 year
    • brakes / handles - 90 days
    • wheels - none / on arrival 30 days
    • screws / bolts / nuts - none / on arrival 30 days
    • cushions / seats - none / on arrival 30 days
    • paint / panels - none / on arrival 30 days



    FAQs


  • What is the maximum weight capacity?
  • The knee walker safely supports up to 300 lbs.


  • Does the knee walker come with a bag?
  • Yes, a removable storage bag is included with your purchase.


  • Is this an all terrain knee walker?
  • Yes, the large, 12 in. wheels easily maneuver over indoor and outdoor surfaces such as gravel, dirt, and grass.


  • Do you offer any knee walker accessories?
  • Yes, every walker purchase includes a detachable storage bag. Additional accessories include a memory foam pad cover or a sheepskin knee platform cover for extra cushioning and support.


  • What is the recommended tire pressure?
  • 20 PSI


  • How comfortable is the knee pad?
  • The foam knee cushion is ergonomically designed to contour to the leg. It allows pressure to be evenly distributed across the knee platform and supplies better air circulation for a comfortable user experience.


  • How heavy is the knee scooter?
  • The knee scooter weighs approximately 25 pounds.


  • How do I get replacement parts?
  • Call us at 1-800-487-3808 or by email. We would be happy to provide you with any parts you need.



  • How do I assemble my Knee Walker?
  • Please see "How to Assemble" instructions below or click the manual icon at the bottom of the page to download directions.


    UPC: 818323022896

    Product Number: MOB1019BLK

    Shipping Weight: 31.7 pounds
